Agricultural Bearing: Square Bore Series

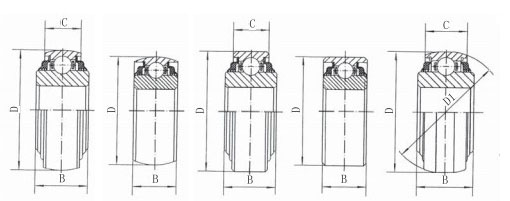

1> Non Relubricatable Series

Bearing No. Type Dimensions mm in. Dynamic load ratings N Static load ratings N Weight
(kg)

H d1 D C B h

W208PP 5 3 29.972 32 80 　 18 36.5 29500 18100 0.6

W208PPB 5 1 29.972 32 80 　 18 36.5 29500 181100 0.59

W208PP 6 3 26.162 27.8 80 　 18 36.5 29500 18100 0.662

W208PPB 6 1 26.162 27.8 80 　 18 36.5 29500 18100 0.652

W208PP 8 3 29.972 32 80 　 30.2 36.5 29500 18100 0.709

W208PPB 8 1 29.972 32 80 　 30.2 36.5 29500 18100 0.735

W208PPB 9 1 26.162 27.8 80 　 30.2 36.5 29500 18100 0.788

W208PPB 11 5 22.987 24.8 85.75 87.338 30.2 36.5 29500 18100 0.956

W208PPB 12 5 29.972 32 85.75 87.338 30.2 36.5 29500 18100 0.953

W208PPB 13 1 22.987 24.8 80 　 18 36.5 29500 18100 0.69

W209PPB 5 1 32.766 34.3 85 　 30.2 36.5 31600 20600 0.945

W209PPB 8 1 32.766 34.3 85 　 19 36.5 31600 20600 0.723

W210PP 4 4 29.972 32 90 　 30.2 30.2 35000 23200 1.049

W210PPB 4 2 29.972 32 90 　 30.2 30.2 35000 23200 0.846

W210PPB 6 1 29.972 32 90 　 30.2 36.5 35000 29200 0.733

W211PP 3 4 38.89 42 100 　 33.3 33.3 43500 29200 1.271

W211PPB 3 2 38.89 42 100 　 33.3 33.3 43500 29200 1.208

W211PP 5 3 38.89 42 101.6 　 36.5 44.45 43500 29200 1.302

W211PPB 6 5 38.89 42 103.56 104.9 36.5 44.45 43500 29200 1.61

4509BA 3 32.766 34.3 85 　 30.2 35.5 31600 20600 0.782

Bearing No.	Type	Dimensions mm in.	Dynamic load ratings N	Static load ratings N	Weight (kg)
H	d1	D	C	B	h
W208PP 5	3	29.972	32	80		18	36.5	29500	18100	0.6
W208PPB 5	1	29.972	32	80		18	36.5	29500	181100	0.59
W208PP 6	3	26.162	27.8	80		18	36.5	29500	18100	0.662
W208PPB 6	1	26.162	27.8	80		18	36.5	29500	18100	0.652
W208PP 8	3	29.972	32	80		30.2	36.5	29500	18100	0.709
W208PPB 8	1	29.972	32	80		30.2	36.5	29500	18100	0.735
W208PPB 9	1	26.162	27.8	80		30.2	36.5	29500	18100	0.788
W208PPB 11	5	22.987	24.8	85.75	87.338	30.2	36.5	29500	18100	0.956
W208PPB 12	5	29.972	32	85.75	87.338	30.2	36.5	29500	18100	0.953
W208PPB 13	1	22.987	24.8	80		18	36.5	29500	18100	0.69
W209PPB 5	1	32.766	34.3	85		30.2	36.5	31600	20600	0.945
W209PPB 8	1	32.766	34.3	85		19	36.5	31600	20600	0.723
W210PP 4	4	29.972	32	90		30.2	30.2	35000	23200	1.049
W210PPB 4	2	29.972	32	90		30.2	30.2	35000	23200	0.846
W210PPB 6	1	29.972	32	90		30.2	36.5	35000	29200	0.733
W211PP 3	4	38.89	42	100		33.3	33.3	43500	29200	1.271
W211PPB 3	2	38.89	42	100		33.3	33.3	43500	29200	1.208
W211PP 5	3	38.89	42	101.6		36.5	44.45	43500	29200	1.302
W211PPB 6	5	38.89	42	103.56	104.9	36.5	44.45	43500	29200	1.61
4509BA	3	32.766	34.3	85		30.2	35.5	31600	20600	0.782

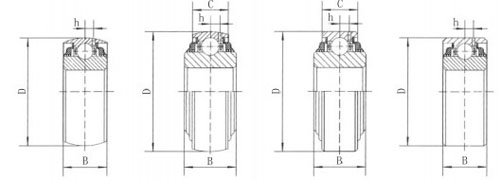

2> Relubricatable Series

Bearing No. Type Dimensions mm in. Dynamic load ratings N Static load ratings N Weight
(kg)

H d1 D C B h

GW208PPB 5 2 29.972 32 80 24 36.5 6.4 29500 18100 0.635

GW208PPB 6 2 26.162 27.8 80 24 36.5 6.4 29500 18100 0.762

GW208PPB 8 2 29.972 32 80 30.2 36.5 6.4 29500 18100 0.658

GW209PPB 5 2 32.766 34.3 85 30.2 36.5 6.6 31600 20600 0.795

GW209PPB 8 2 32.766 34.3 85 22 36.5 6.6 31600 20600 0.749

GW209PPB 17 2 29.972 32 85.738 30.2 36.5 6.6 31600 20600 1.922

GW210PPB 4 1 29.972 32 90 30.2 30.2 6.6 35000 23200 0.84

GW211PPB 3 4 38.89 42 100 33.3 33.3 7.6 43500 29200 1.106

GW211PPB 3 1 38.89 42 100 33.3 33.3 7.6 43500 29200 1.036

GW211PP 5 3 38.89 42 101.6 36.5 44.45 7.6 43500 29200 1.302

GW211PP 17 3 38.89 42 100 33.3 44.45 7.6 43500 29200 1.252

GW214PPB 4 1 52.2 54.9 125 39.7 39.7 9 60800 45000 2.157
