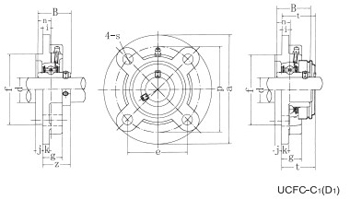

Bearings Units and Housings: UCFC Series

  IMG IMG
Bearing
NO.		 Dimensions mm inch Bolt
Size		 Weight
mm (Kg)
d a p e i s j k g f z B n inch 　
UCFC201 12 100 78 55.1 10 12 5 7 20.5 62 28.3 31 12.7 M10 0.73
UCFC201-8 1/2 3-15/16 3-5/16 2-11/64 15/32 15/32 13/64 9/32 13/16 2.4409 1-1/8 1.2205 0.5 3/8 0.73
UCFC202 15 100 78 55.1 10 12 5 7 20.5 62 28.3 31 12.7 M10 0.72
UCFC202-9 9/16 3-15/16 3-5/16 2-11/64 15/32 15/32 13/64 9/32 13/16 2.4409 1-1/8 1.2205 0.5 3/8 0.72
UCFC202-10 5/8 0.72
UCFC203 17 100 78 55.1 10 12 5 7 20.5 62 28.3 31 12.7 M10 0.71
UCFC203-11 11/16 3-15/16 3-5/16 2-11/64 15/32 15/32 13/64 9/32 13/16 2.4409 1-1/8 1.2205 0.5 3/8 0.7
UCFC204 20 100 78 55.1 10 12 5 7 20.5 62 28.3 31 12.7 M10 0.69
UCFC204-12 3/4 3-15/16 3-5/16 2-11/64 15/32 15/32 13/64 9/32 13/16 2.4409 1-1/8 1.2205 0.5 3/8 0.69
UCFC205 25 115 90 63.6 10 12 6 7 21 70 29.8 34.1 14.3 M10 1
UCFC205-13 13/16 4-17/32 3-35/64 2-1/2 15/32 15/32 15/64 9/32 53/64 2.7559 1-11/64 1.3425 0.563 3/8 1.04
UCFC205-14 7/8 1.03
UCFC205-15 15/16 1.01
UCFC205-16 1 1
UCFC206 30 125 100 70.7 10 12 8 8 23 80 32.2 38.1 15.9 M10 1.3
UCFC206-17 1-1/16 4-59/64 3-15/16 2-25/32 15/32 15/32 5/16 5/16 29/32 3.1496 1-17/64 1.5 0.626 3/8 1.31
UCFC206-18 1-1/8 1.32
UCFC206-19 1-3/16 1.3
UCFC206-20 1-1/4 1.29
UCFC207 35 135 110 77.8 11 14 8 9 26 90 36.4 42.9 17.5 M12 1.81
UCFC207-20 1-1/4 2-5/16 4-21/64 3-1/16 7/16 35/64 5/16 23/64 1-1/32 3.5433 1-7/16 1.689 0.689 7/16 1.87
UCFC207-21 1-5/16 1.84
UCFC207-22 1-3/8 1.81
UCFC207-23 1-7/16 1.78
UCFC208 40 145 120 84.8 11 14 10 9 26 100 41.2 49.2 19 M12 2.14
UCFC208-24 1-1/2 5-45/64 4-23/32 3-11/32 7/16 35/64 25/64 23/64 1-1/32 3.937 1-5/8 1.937 0.748 7/16 2.18
UCFC208-25 1-9/16 2.15
UCFC209 45 160 132 93.3 10 16 12 14 26 105 40.2 49.2 19 M14 2.68
UCFC209-26 1-5/8 6-19/64 5--13/64 3-43/64 25/64 5/8 15/32 35/64 1-1/32 4.1339 1-37/64 1.937 0.748 1/2 2.78
UCFC209-27 1-11/16 2.74
UCFC209-28 1-3/4 2.7
UCFC210 50 165 138 97.6 10 16 12 14 28 110 42.6 51.6 19 M14 2.9
UCFC210-29 1-13/16 6-1/2 5-7/16 3-27/32 25/64 5/8 15/32 35/64 1-7/64 4.3307 1-11/16 2.0315 0.748 1/2 3.02
UCFC210-30 1-7/8 2.97
UCFC210-31 1-15/16 2.92
UCFC210-32 2 2.88
UCFC211 55 185 150 106.1 13 19 12 15 31 125 46.4 55.6 22.2 M16 4.01
UCFC211-32 2 6-1/2 5-29/32 4-3/16 33/64 3/4 15/32 19/32 1-7/32 4.9213 1-53/64 2.189 0.874 5/8 4.16
UCFC211-33 2-1/16 4.1
UCFC211-34 2-1/8 4.05
UCFC211-35 2-3/16 3.99
UCFC212 60 195 160 113.1 17 19 12 15 36 135 56.7 65.1 25.4 M16 4.94
UCFC212-36 2-1/4 7-11/16 6-19/64 4-29/64 43/64 3/4 15/32 19/32 1-27/64 5.315 2-15/64 2.563 1 5/8 5.07
UCFC212-37 2-5/16 4.99
UCFC212-38 2-3/8 4.92
UCFC212-39 2-7/16 4.85
UCFC213 65 205 170 120.2 16 19 14 15 36 145 55.7 65.1 25.4 M16 5.65
UCFC213-40 2-1/2 8-5/64 6-11/16 4-47/64 5/8 3/4 35/64 19/32 1-27/64 5.5118 1-3/16 2.563 1 5/8 5.74
UCFC213-41 2-9/16 5.65
UCFC214 70 215 177 125.1 17 19 14 18 40 150 61.4 74.6 30.2 M16 6.95
UCFC214-42 2-5/8 8-15/32 6-31/32 4-59/64 43/64 3/4 35/64 19/32 1-37/64 5.9055 1-13/32 2.937 1.189 5/8 7.16
UCFC214-43 2-11/16 7.06
UCFC214-44 2-3/4 6.96
UCFC215 75 220 184 130.1 18 19 16 18 40 160 62.5 77.8 33.3 M16 7.56
UCFC215-45 2-13/16 8-21/32 7-1/4 5-1/8 23/32 3/4 5/8 19/32 1-37/64 6.2992 2-15/32 3.063 1.311 5/8 7.81
UCFC215-46 2-7/8 7.7
UCFC215-47 2-15/16 7.59
UCFC215-48 3 7.47
UCFC216 80 240 200 141.4 18 23 16 18 42 170 67.3 82.6 33.3 M20 9.15
UCFC216-49 3-1/16 9-29/64 7-7/8 5-9/16 23/32 29/32 5/8 19/32 1-21/32 6.6929 2-21/32 3.252 1.311 3/4 9.28
UCFC216-50 3-1/8 9.2
UCFC216-51 3-3/16 9.07
UCFC217 85 250 208 147.1 18 23 18 20 45 180 69.6 85.7 34.1 M20 10.81
UCFC217-52 3-1/16 9-27/32 8-3/16 5-51/64 23/32 29/32 23/32 25/32 1-25/32 7.0866 2-3/4 3.374 1.343 3/4 11.03
UCFC217-53 3-5/16 10.89
UCFC217-55 3-7/16 10.6
UCFC218 90 265 220 155.5 22 23 18 20 50 190 78.3 96 39.7 M20 12.98
UCFC218-56 3-1/2 10-7/16 8-21/32 6-1/8 55/64 29/32 23/32 25/32 1-31/32 7.4803 3-3/32 3.7795 1.563 3/4 13.07
