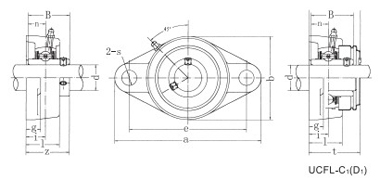

Bearings Units and Housings: UCFL Series

Bearing NO.	Dimensions mm inch											Bolt Size	Weight
												mm	(Kg)
	d	a	e	i	g	l	s	b	z	B	n	inch
UCFL201	12	113	90	15	11	25.5	12	60	33.3	31	12.7	M10	0.45
UCFL201-8	1/2	4-7/16	3-35/64	19/32	7/16	1	15/32	2-3/8	1-5/16	1.2205	0.5	3/8	0.45
UCFL202	15	113	90	15	11	25.5	12	60	33.3	31	12.7	M10	0.44
UCFL202-9	9/16	4-7/16	3-35/64	19/32	7/16	1	15/32	2-3/8	1-5/16	1.2205	0.5	3/8	0.44
UCFL202-10	5/8												0.44
UCFL203	17	113	90	15	11	25.5	12	60	33.3	31	12.7	M10	0.43
UCFL203-11	11/16	4-7/16	3-35/64	19/32	7/16	1	15/32	2-3/8	1-5/16	1.2205	0.5	3/8	0.42
UCFL204	20	113	90	15	11	25.5	12	60	33.3	31	12.7	M10	0.41
UCFL204-12	3/4	4-7/16	3-35/64	19/32	7/16	1	15/32	2-3/8	1-5/16	1.2205	0.5	3/8	0.41
UCFL205	25	130	99	16	13	27	16	68	35.8	34.1	14.3	M14	0.58
UCFL205-13	13/16	5-1/8	3-57/64	5/8	1/2	1-1/16	5/8	2-11/16	1-13/32	1.3425	0.563	1/2	0.62
UCFL205-14	7/8												0.61
UCFL205-15	15/16												0.59
UCFL205-16	1												0.58
UCFL206	30	148	117	18	13	31	16	80	40.2	38.1	15.9	M14	0.86
UCFL206-17	1-1/16	5-13/16	4-39/64	45/64	1/2	1-7/32	5/8	3-5/32	1-19/32	1.5	0.626	1/2	0.89
UCFL206-18	1-1/8												0.88
UCFL206-19	1-3/16												0.86
UCFL206-20	1-1/4												0.85
UCFL207	35	161	130	19	14	34	16	90	44.4	42.9	17.5	M14	1.08
UCFL207-20	1-1/4	6-11/32	5-1/8	3/4	35/64	1-13/32	5/8	3-35/64	1-3/4	1.689	0.689	1/2	1.14
UCFL207-21	1-5/16												1.11
UCFL207-22	1-3/8												1.08
UCFL207-23	1-7/16												1.05
UCFL208	40	175	144	21	14	36	16	100	51.2	49.2	19	M14	1.44
UCFL208-24	1-1/2	6-7/8	5-43/64	53/64	35/64	1-13/32	5/8	3-15/16	2-1/64	1.937	0.748	1/2	1.48
UCFL208-25	1-9/16												1.45
UCFL209	45	188	148	22	15	38	19	108	52.2	49.2	19	M16	1.74
UCFL209-26	1-5/8	7-13/32	5-53/64	55/64	19/32	1-1/2	3/4	4-1/4	2-1/16	1.937	0.748	5/8	1.84
UCFL209-27	1-11/16												1.8
UCFL209-28	1-3/4												1.76
UCFL210	50	197	157	22	15	40	19	115	54.6	51.6	19	M16	2.1
UCFL210-29	1-13/16	7-3/4	6-3/16	55/64	19/32	1-37/64	3/4	4-17/32	2-5/32	2.0315	0.748	5/8	2.22
UCFL210-30	1-7/8												2.17
UCFL210-31	1-15/16												2.12
UCFL210-32	2												2.08
UCFL211	55	224	184	25	18	43	19	130	58.4	55.6	22.2	M16	2.91
UCFL211-32	2	8-13/16	7-1/4	63/64	23/32	1-11/16	3/4	5-1/8	2-5/16	2.189	0.874	5/8	3.06
UCFL211-33	2-1/16												3
UCFL211-34	2-1/8												2.95
UCFL211-35	2-3/16												2.89
UCFL212	60	250	202	29	18	48	23	140	68.7	65.1	25.4	M20	3.74
UCFL212-36	2-1/4	9-27/32	7-61/64	1-9/64	23/32	1-7/8	29/32	5-1/2	2-23/32	2.563	1	3/4	3.87
UCFL212-37	2-5/16												3.79
UCFL212-38	2-3/8												3.72
UCFL212-39	2-7/16												3.65
UCFL213	65	258	210	30	22	50	23	155	69.7	65.1	25.4	M20	4.57
UCFL213-40	2-1/2	10-5/32	8-17/64	1-3/16	7/8	1-31/32	29/32	6-3/32	2-3/4	2.563	1	3/4	4.66
UCFL213-41	2-9/16												4.57
UCFL214	70	265	216	31	22	54	23	160	75.4	74.6	30.2	M20	5.11
UCFL214-42	2-5/8	10-7/16	8-1/2	1-7/32	7/8	2-1/8	29/32	6-5/16	2-31/32	2.937	1.189	3/4	5.32
UCFL214-43	2-11/16												5.22
UCFL214-44	2-3/4												5.12
UCFL215	75	275	225	34	22	56	23	165	78.5	77.8	33.3	M20	5.37
UCFL215-45	2-13/16	10-13/16	8-55/64	1-11/32	7/8	2-7/32	29/32	6-1/2	3-3/32	3.063	1.311	3/4	5.62
UCFL215-46	2-7/8												5.51
UCFL215-47	2-15/16												5.4
UCFL215-48	3												5.28
UCFL216	80	290	233	34	22	58	25	180	83.3	82.6	33.3	M22	7.2
UCFL216-49	3-1/16	11-13/32	9-11/64	1-11/32	7/8	2-9/32	63/64	7-3/32	3-9/32	3.252	1.311	7/8	7.38
UCFL216-50	3-1/8												7.25
UCFL216-51	3-1/16												7.12
UCFL217	85	305	248	36	24	63	25	190	87.6	85.7	34.1	M22	8.61
UCFL217-52	3-1/4	12	9-49/64	1-27/64	15/16	2-15/32	63/64	7-15/32	3-7/16	3.374	1.343	7/8	8.83
UCFL217-53	3-5/16												8.69
UCFL217-55	3-7/16												8.4
UCFL218	90	320	265	40	24	68	25	205	96.3	96	39.7	M22	10.51
UCFL218-56	3-1/2	12-19/32	10-7/16	1-37/64	15/16	2-11/16	63/64	8-1/16	3-25/32	3.7795	1.563	7/8	10.62
UCFL305	25	150	113	16	13	29	19	80	39	38	15	M16	1.1
UCFL305-13	13/16	5-29/32	4-7/16	5/8	1/2	1-5/32	3/4	3-5/32	1-17/32	1.4961	0.591	39941
UCFL305-14	7/8
UCFL305-15	15/16
UCFL305-16	1
UCFL306	30	180	134	18	15	32	23	90	44	43	17	M20	1.5
UCFL306-17	1-1/6	7-3/32	5-9/32	45/64	19/32	1-1/4	29/32	3-17/32	1-47/64	1.6929	0.669	3/4
UCFL306-18	1-6/8
UCFL306-19	1-3/16
UCFL307	35	185	141	20	16	36	23	100	49	48	19	M20	1.9
UCFL307-20	1-1/4	7-9/32	5-35/64	25/32	5/8	1-13/32	29/32	3-15/16	1-59/64	1.8898	0.748	3/4
UCFL307-21	1-5/16
UCFL307-22	1-3/8
UCFL307-23	1-7/16
UCFL308	40	200	158	23	17	40	23	112	56	52	19	M20	2.5
UCFL308-24	1-1/2	7-7/8	5-7/32	29/32	21/32	1-9/16	29/32	4-13/32	1-13/64	2.0472	0.748	3/4
UCFL308-25	1-9/16
UCFL309	45	230	177	25	18	44	25	125	60	57	22	M22	3.4
UCFL309-26	1-5/8	9-1/16	6-31/32	63/64	23/32	1-23/32	63/64	4-29/32	2-23/64	2.2441	0.866	7/8
UCFL309-27	1-11/16
UCFL309-28	1-3/4
UCFL310	50	240	187	28	19	48	25	140	67	61	22	M22	4.4
UCFL310-29	1-13/16	9-7/16	7-23/64	1-7/64	3/4	1-7/8	63/64	5-1/2	2-41/64	2.4016	0.866	7/8
UCFL310-30	1-7/8
UCFL310-31	1-15/16
UCFL311	55	250	198	30	20	52	25	150	71	66	25	M22	5.1
UCFL311-32	2	9-27/32	7-51/64	1-3/16	25/32	2-1/16	63/64	5-29/32	2-51/64	2.5984	0.984	7/8
UCFL311-33	2-1/16
UCFL311-34	2-1/8
UCFL311-35	2-3/16
UCFL312	60	270	212	33	22	56	31	160	78	71	26	M27	6.1
UCFL312-36	2-1/4	10-5/8	8-11/12	1-19/64	7/8	2-7/32	1-7/32	6-5/64	3-5/64	2.9753	1.024	1
UCFL312-37	2-5/16
UCFL312-38	2-3/8
UCFL312-39	2-7/16
UCFL313	65	295	240	33	25	58	31	175	78	75	30	M27	7.8
UCFL313-40	2-1/2	11-5/8	9-29/64	1-19/64	31/32	2-9/32	1-7/32	6-7/8	3-5/64	2.9528	1.181	1
UCFL313-41	2-9/16
UCFL314	70	315	250	36	28	61	35	185	81	78	33	M20	9
UCFL314-42	2-5/8	12-13/32	9-27/32	1-27/64	1-3/32	2-13/32	1-3/8	7-9/32	3-3/16	3.0708	1.299	1-1/8
UCFL314-43	2-11/16
UCFL314-44	2-3/4
UCFL315	75	320	260	39	30	66	35	195	89	82	32	M30	10
UCFL315-45	2-13/16	12-19/32	10-15/64	1-17/32	1-3/16	2-19/32	1-3/8	7-11/16	3-1/2	3.2283	1.26	1-1/8
UCFL315-46	2-7/8
UCFL315-47	2-15/16
UCFL315-48	3
UCFL316	80	355	285	38	32	68	38	210	90	86	34	M33	13
UCFL316-49	3-1/16	13-31/32	11-7/32	1-1/2	1-1/4	2-11/16	1-1/2	8-9/32	3-35/64	3.3858	1.339	1-1/4
UCFL316-50	3-1/8
UCFL316-51	3-3/16
UCFL317	85	370	300	44	32	74	38	220	100	96	40	M33	15
UCFL317-52	3-1/4	14-9/16	11-13/14	1-47/64	1-1/4	2-29/32	1-1/2	8-21/32	3-15/16	3.7795	1.575	1-1/4
UCFL317-53	3-5/16
UCFL317-55	3-7/16
UCFL318	90	385	315	44	36	76	38	235	100	96	40	M33	15
UCFL318-55	3-7/16	15-5/32	12-13/32	1-47/64	1-13/32	3	1-1/2	9-1/4	3-15/16	3.7795	1.575	1-1/4
UCFL318-56	3-1/2
